Michaelis-Menton growth base - Version 1.0. More...

#include <MichMenGrowthBase.h>

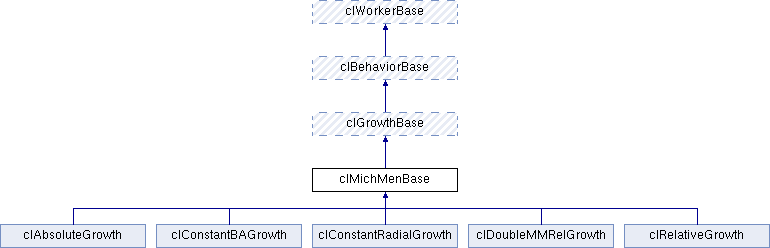

Inheritance diagram for clMichMenBase:

Public Member Functions
	clMichMenBase (clSimManager *p_oSimManager)
	Constructor. More...

virtual	~clMichMenBase ()
	Destructor. More...

Public Member Functions inherited from clGrowthBase
	clGrowthBase (clSimManager *p_oSimManager)
	Constructor. More...

virtual	~clGrowthBase ()
	Destructor. More...

void	Action ()
	Performs all growth calculations if "hooked". More...

virtual float	CalcDiameterGrowthValue (clTree p_oTree, clTreePopulation p_oPop, float fHeightGrowth)
	Calculates the amount of diameter growth increase for a particular tree, if applicable. More...

virtual float	CalcHeightGrowthValue (clTree p_oTree, clTreePopulation p_oPop, float fDiameterGrowth)
	Calculates the amount of height growth increase for a particular tree, if applicable. More...

virtual void	PreGrowthCalcs (clTreePopulation *p_oPop)
	Performs calculations before any DBHs have been changed. More...

growthType	GetGrowthMethod ()
	Gets the method by which this behavior increments growth. More...

clGrowthOrg *	GetGrowthOrg ()
	Get the growth org object. More...

void	RegisterTreeDataMembers ()
	Performs data member registrations for "Growth". More...

Public Member Functions inherited from clBehaviorBase
virtual float	GetBehaviorVersion ()
	Gets the behavior version number. More...

	clBehaviorBase (clSimManager *p_oSimManager)
	Constructor. More...

virtual	~clBehaviorBase ()
	Destructor. More...

virtual short int	ValidateVersionNumber (float fTestVersion)
	Makes sure that the version number of a file passed is between the minimum and current version numbers. More...

virtual void	SetSpeciesTypeCombos (short int iNumCombos, stcSpeciesTypeCombo *p_whatCombos)
	Sets the species/type combos for a behavior. More...

virtual void	SetNameData (std::string sNameString)
	Sets the string for the parameter file behavior. More...

virtual short int	GetNewTreeInts ()
	Gets the number of new tree integer data members this behavior wants to register. More...

virtual short int	GetNewTreeFloats ()
	Gets the number of new tree float data members this behavior wants to register. More...

virtual short int	GetNewTreeChars ()
	Gets the number of new tree character data members this behavior wants to register. More...

virtual short int	GetNewTreeBools ()
	Gets the number of new tree bool data members this behavior wants to register. More...

virtual short int	GetNumSpeciesTypeCombos ()
	Gets the number of species/type combos to which this behavior applies. More...

virtual short int	GetNumBehaviorSpecies ()
	Gets the number of unique tree species to which this behavior applies. More...

struct stcSpeciesTypeCombo	GetSpeciesTypeCombo (short int iIndex)
	Gets one of this behavior's type/species combos. More...

virtual short int	GetBehaviorSpecies (short int iIndex)
	Gets one of the behavior's species. More...

short int	GetBehaviorListNumber ()
	Gets the behavior list number for this behavior, which differentiates between multiple copies of the behavior in the behavior list. More...

void	SetBehaviorListNumber (short int iNumber)
	Sets the behavior list number for this behavior, which differentiates between multiple copies of the behavior in the behavior list. More...

std::string	FormatSpeciesTypeQueryString ()
	Formats the string for species/types query. More...

virtual DOMElement *	GetParentParametersElement (xercesc::DOMDocument *p_oDoc)
	This will get the correct set of parameters for this behavior based on the behavior list position number. More...

Public Member Functions inherited from clWorkerBase
	clWorkerBase (clSimManager *p_oSimManager)
	Constructor. More...

virtual	~clWorkerBase ()
	Destructor. More...

std::string	GetName ()
	Gets the object's namestring. More...

clSimManager *	GetSimManager ()

void	DoObjectSetup (xercesc::DOMDocument *p_oDoc, fileType iFileType)
	Triggers the setup process. More...

virtual void	TimestepCleanup ()
	Performs any necessary cleanup operations at the end of a timestep. More...

virtual void	EndOfRunCleanup ()
	Performs any necessary cleanup operations at the end of a run. More...

Protected Member Functions
void	GetParameterFileData (xercesc::DOMDocument *p_oDoc)
	Extracts growth parameters. More...

float	CalculateMichaelisMentonDiam (short int &iSpecies, float &fGli)
	Calculates the result of the Michaelis-Menton function using diameter growth parameters. More...

float	CalculateMichaelisMentonHeight (short int &iSpecies, float &fGli)
	Calculates the result of the Michaelis-Menton function using height growth parameters. More...

float	ApplyGrowthLimits (const short int &iSpecies, const float &fAmountDiamIncrease, const float &fDiam)
	Applies applicable growth limits according to the flags set. More...

float	GetGrowthMemberValue (clTree *p_oTree, float fDiameterGrowth)
	Gets the proper value for the "Growth" data member for mortality calculations based on growth. More...

Protected Member Functions inherited from clGrowthBase
void	GetData (xercesc::DOMDocument *p_oDoc)
	Triggers all growth setup if an object is hooked. More...

virtual void	DoShellSetup (xercesc::DOMDocument *p_oDoc)
	Setup for a descendent class. More...

Protected Member Functions inherited from clWorkerBase
void	AssembleFileCode (int iFileType, int iFileVersion, char *cCode)
	Creates the proper identifying filecode for an XML file. More...

Protected Attributes
double *	mp_fSlopeDiamGrowthResponse
	Slope of diameter growth response. More...

double *	mp_fSlopeHeightGrowthResponse
	Slope of height growth response. More...

double *	mp_fAdultConstBAInc
	Adult constant basal area increment in cm2/timestep (parameter file value is expected in cm2/yr). More...

double *	mp_fAdultConstRadInc
	Adult constant radial increment in cm/timestep (parameter file value is expected in mm/yr). More...

double *	mp_fAsympDiamGrowth
	Asymptotic diameter growth. More...

double *	mp_fAsympHeightGrowth
	Asymptotic height growth. More...

bool	m_bConstRadialLimited
	Whether or not growth is limited to constant radial increment. More...

bool	m_bConstBasalAreaLimited
	Whether or not growth is limited to constant basal area increment. More...

Protected Attributes inherited from clGrowthBase
growthType	m_iGrowthMethod
	The method by which this object plans to update tree dimensions. More...

float	m_fConvertCmPerTSToMmPerYr
	Conversion factor from cm diameter growth per timestep to mm radial growth per year. More...

float	m_fConvertMmPerYearToCmPerTS
	Conversion factor to take amounts from mm of radial growth per year to cm of diameter growth per timestep. More...

bool	m_bHooked
	Wwhether or not this shell object is hooked to clGrowthOrg. More...

bool	m_bGoLast
	Whether or not this behavior's growth should go last when used with a complementary growth behavior. More...

Protected Attributes inherited from clBehaviorBase
short int	m_iNumSpeciesTypeCombos
	How many type/species combos a behavior will act on. More...

short int	m_iNumBehaviorSpecies
	How many distinct species are in the combo list - important for filling species-specific values from parameter file. More...

short int *	mp_iWhatSpecies
	List of distinct species - for filling species-specific values from parameter file. More...

stcSpeciesTypeCombo *	mp_whatSpeciesTypeCombos
	Array of species/type combos that the behavior will act on. More...

short int	m_iNewTreeInts
	The number of new tree integer data members this behavior wants to add. More...

short int	m_iNewTreeFloats
	The number of new tree float data members this behavior wants to add. More...

short int	m_iNewTreeChars
	The number of new tree character data members this behavior wants to add. More...

short int	m_iNewTreeBools
	The number of new tree boolean data members this behavior wants to add. More...

short int	m_iBehaviorListNumber
	The number of this behavior in the behavior list, to differentiate between possible multiple copies of this behavior. More...

float	m_fVersionNumber
	Version number - this will be rounded to 2 digits after the decimal place. More...

std::string	m_sXMLRoot
	XML root that encloses the parameters for this behavior. More...

float	m_fMinimumVersionNumber
	Minimum version number - this behavior will run parameter data for a file marked between this number and the current version number, inclusive. More...

Protected Attributes inherited from clWorkerBase
std::string	m_sNameString
	If a behavior has registered a command line command with the sim manager, this allows it to be called. More...

clSimManager *	mp_oSimManager
	Pointer to the simulation manager object. More...

int *	mp_iAllowedFileTypes
	List of the input file types this object can handle. More...

int	m_iNumAllowedTypes
	Number of input file types this object can handle. More...

Additional Inherited Members
Public Types inherited from clGrowthBase
enum	growthType { diameter_auto, diameter_only, height_only }
	Values describing the method by which the object instance of this class plans to implement tree growth. More...

Static Protected Attributes inherited from clGrowthBase
static clGrowthOrg *	mp_oGrowthOrg
	clGrowthOrg object - this pointer is held in common by all shells More...

Detailed Description

Michaelis-Menton growth base - Version 1.0.

This is the base class for growth behavior shell classes which use the Michaelis-Menton function for growth. The variables held in common across classes are static here.

Author: Lora E. Murphy

Edit history:
--------------—
October 20, 2011 - Wiped the slate clean for SORTIE 7.0 (LEM)

Constructor & Destructor Documentation

◆ clMichMenBase()

clMichMenBase::clMichMenBase ( clSimManager * p_oSimManager )

Constructor.

Parameters

p_oSimManager Sim Manager object.

◆ ~clMichMenBase()

virtual clMichMenBase::~clMichMenBase ( )

virtual

Destructor.

Deletes the static arrays if they haven't already been deleted.

Member Function Documentation

◆ ApplyGrowthLimits()

float clMichMenBase::ApplyGrowthLimits	(	const short int &	iSpecies,
		const float &	fAmountDiamIncrease,
		const float &	fDiam
	)

protected

Applies applicable growth limits according to the flags set.

If a flag is set and the growth passed is higher than the applicable limit, the limit is returned instead; otherwise, the growth is returned.

If m_bConstRadialLimited is set to true, the limit is the value in mp_fAdultConstRadInc for that species. If m_bConstBasalAreaLimited is set to true, then the limit is the value in mp_fAdultConstBAInc divided by the tree's diameter (recall that mp_fAdultConstBAInc is in squared units).

Parameters

iSpecies	Species number
fAmountDiamIncrease	Amount of diameter increase in cm/timestep
fDiam	Tree diameter in cm

Returns: The amount of growth in cm

◆ CalculateMichaelisMentonDiam()

float clMichMenBase::CalculateMichaelisMentonDiam	(	short int &	iSpecies,
		float &	fGli
	)

inlineprotected

Calculates the result of the Michaelis-Menton function using diameter growth parameters.

Parameters

iSpecies	Species number
fGli	GLI value as a percentage between 0 and 100

Returns: Function result.

◆ CalculateMichaelisMentonHeight()

float clMichMenBase::CalculateMichaelisMentonHeight	(	short int &	iSpecies,
		float &	fGli
	)

inlineprotected

Calculates the result of the Michaelis-Menton function using height growth parameters.

Parameters

iSpecies	Species number
fGli	GLI value as a percentage between 0 and 100

Returns: Function result.

◆ GetGrowthMemberValue()

float clMichMenBase::GetGrowthMemberValue	(	clTree *	p_oTree,
		float	fDiameterGrowth
	)

protectedvirtual

Gets the proper value for the "Growth" data member for mortality calculations based on growth.

In order to keep old slow growers from dying, if the tree's DBH is greater than 30 cm and its GLI is greater than 10, the return value is 10. Otherwise, the tree's amount of annual diameter increase is used.

Parameters

p_oTree	Tree to get "Growth" for.
fDiameterGrowth	Amount of diameter growth to be added. Value to place in "Growth", in mm radial growth/yr.

Reimplemented from clGrowthBase.

◆ GetParameterFileData()

void clMichMenBase::GetParameterFileData ( xercesc::DOMDocument * p_oDoc )

protected

Extracts growth parameters.

This should be called in child DoShellSetup() functions. If a child behavior wants a particular array filled, simply declare it; all non-needed arrays can be left NULL. Only those species to which a child behavior apply will be filled.

Parameters

p_oDoc DOM tree of parsed input file.

Member Data Documentation

◆ m_bConstBasalAreaLimited

bool clMichMenBase::m_bConstBasalAreaLimited

protected

Whether or not growth is limited to constant basal area increment.

◆ m_bConstRadialLimited

bool clMichMenBase::m_bConstRadialLimited

protected

Whether or not growth is limited to constant radial increment.

◆ mp_fAdultConstBAInc

double* clMichMenBase::mp_fAdultConstBAInc

protected

Adult constant basal area increment in cm2/timestep (parameter file value is expected in cm2/yr).

Array size is number of species.

◆ mp_fAdultConstRadInc

double* clMichMenBase::mp_fAdultConstRadInc

protected

Adult constant radial increment in cm/timestep (parameter file value is expected in mm/yr).

Old parameter g4. Array size is number of species.

◆ mp_fAsympDiamGrowth

double* clMichMenBase::mp_fAsympDiamGrowth

protected

Asymptotic diameter growth.

Old parameter g1. Array size is number of species.

◆ mp_fAsympHeightGrowth

double* clMichMenBase::mp_fAsympHeightGrowth

protected

Asymptotic height growth.

Old parameter g1. Array size is number of species.

◆ mp_fSlopeDiamGrowthResponse

double* clMichMenBase::mp_fSlopeDiamGrowthResponse

protected

Slope of diameter growth response.

Array size is number of species. Old parameter g2.

◆ mp_fSlopeHeightGrowthResponse

double* clMichMenBase::mp_fSlopeHeightGrowthResponse

protected

Slope of height growth response.

Array size is number of species.

The documentation for this class was generated from the following file:

MichMenGrowthBase.h

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ clMichMenBase()

◆ ~clMichMenBase()

Member Function Documentation

◆ ApplyGrowthLimits()

◆ CalculateMichaelisMentonDiam()

◆ CalculateMichaelisMentonHeight()

◆ GetGrowthMemberValue()

◆ GetParameterFileData()

Member Data Documentation

◆ m_bConstBasalAreaLimited

◆ m_bConstRadialLimited

◆ mp_fAdultConstBAInc

◆ mp_fAdultConstRadInc

◆ mp_fAsympDiamGrowth

◆ mp_fAsympHeightGrowth

◆ mp_fSlopeDiamGrowthResponse

◆ mp_fSlopeHeightGrowthResponse
