This is an internal frame which displays a color legend for species-based charts. More...

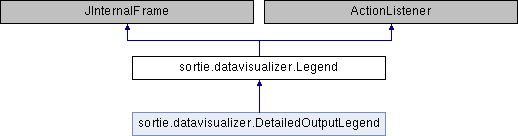

Inheritance diagram for sortie.datavisualizer.Legend:

Public Member Functions
	Legend (DataFileManager oManager, String sTitle, String[] p_sSpeciesNames) throws ModelException
	Constructor. More...

Color	getSpeciesColor (int iIndex) throws ModelException
	Gets the color associated with a particular species. More...

Color	getSpeciesColor (String sName) throws ModelException
	Gets the color associated with a particular species. More...

boolean	getIsSpeciesSelected (int iIndex) throws ModelException
	Get whether or not a species' checkbox indicates that it is selected. More...

int	getNumberOfSpecies ()
	Gets the total number of species for this legend. More...

void	actionPerformed (ActionEvent e)
	Triggered when a checkbox is toggled on or off. More...

String	getSpeciesCodeName (int i) throws ModelException
	Gets the internal code species name for a given species index. More...

String	getSpeciesDisplayName (int i) throws ModelException
	Gets the species display name for a given species index. More...

void	chooseColor (ActionEvent e)
	Displays the color chooser when the user clicks the color chooser button, and extracts the chosen color. More...

Protected Member Functions
void	createColorList ()
	Creates the GUI and lays out all the components. More...

Protected Attributes
String []	mp_sSpeciesNames
	The names of each of the species. More...

String []	mp_sDisplayNames
	The names that will be displayed. More...

Color []	mp_oSpeciesColors
	The color for each species. More...

JButton []	mp_jSpeciesColorDisplays
	The color display for each species. More...

JCheckBox []	mp_jSpeciesChecks
	Checkboxes indicating whether or not a species should be visible. More...

DataFileManager	m_oManager
	Parent data file manager. More...

Private Member Functions
void	createGUI () throws Exception
	Creates the GUI and lays out all the components. More...

Detailed Description

This is an internal frame which displays a color legend for species-based charts.

When the user clicks on a color, they get a color chooser that lets them change a species's color.

When species names come in, they may have underscores substituted for spaces. Thus, a separate set of display names is used that will have the underscores removed. The species names with underscores is what all other objects will expect when they ask the legend for help parsing a detailed output file.

Copyright: Copyright (c) Charles D. Canham 2003

Company: Cary Institute of Ecosystem Studies

Author: Lora E. Murphy

Version: 1.0

Edit history:
---------------—
April 28, 2004: Submitted in beta version (LEM)
February 4, 2008: Updated to conform to Java 6 compliance (LEM)
December 20, 2010: Added scroll bar to species list and cleaned up code a bit (LEM)

Constructor & Destructor Documentation

◆ Legend()

sortie.datavisualizer.Legend.Legend	(	DataFileManager	oManager,
		String	sTitle,
		String []	p_sSpeciesNames
	)		throws ModelException

Constructor.

This will create the legend window and assign default colors to all the species.

Parameters

oManager	The parent DataFileManager object.
sTitle	Window title
p_sSpeciesNames	The list of species to display in the legend.

Exceptions

ModelException if the list of species has 0 items, or wrapping another type of exception.

Member Function Documentation

◆ actionPerformed()

void sortie.datavisualizer.Legend.actionPerformed ( ActionEvent e )

Triggered when a checkbox is toggled on or off.

All open charts are redrawn.

Parameters

e	ActionEvent. Ignored.

◆ chooseColor()

void sortie.datavisualizer.Legend.chooseColor ( ActionEvent e )

Displays the color chooser when the user clicks the color chooser button, and extracts the chosen color.

Parameters

e	ActionEvent

◆ createColorList()

void sortie.datavisualizer.Legend.createColorList ( )

protected

Creates the GUI and lays out all the components.

Exceptions

java.lang.Exception If anything goes wrong. This picks a default color for each of our species.

◆ createGUI()

void sortie.datavisualizer.Legend.createGUI ( ) throws Exception

private

Creates the GUI and lays out all the components.

Exceptions

Exception If anything goes wrong.

◆ getIsSpeciesSelected()

boolean sortie.datavisualizer.Legend.getIsSpeciesSelected ( int iIndex ) throws ModelException

Get whether or not a species' checkbox indicates that it is selected.

Parameters

iIndex Species index number.

Returns: Whether or not the species is selected and should be shown in graphs.

Exceptions

ModelException if the species index is not valid.

◆ getNumberOfSpecies()

int sortie.datavisualizer.Legend.getNumberOfSpecies ( )

Gets the total number of species for this legend.

Returns: Number of species.

◆ getSpeciesCodeName()

String sortie.datavisualizer.Legend.getSpeciesCodeName ( int i ) throws ModelException

Gets the internal code species name for a given species index.

Parameters

i	Species index number.

Returns: Species name.

Exceptions

ModelException If the species index is not valid.

◆ getSpeciesColor() [1/2]

Color sortie.datavisualizer.Legend.getSpeciesColor ( int iIndex ) throws ModelException

Gets the color associated with a particular species.

Parameters

iIndex Species index number.

Returns: This species' color.

Exceptions

ModelException if the species index is not valid.

◆ getSpeciesColor() [2/2]

Color sortie.datavisualizer.Legend.getSpeciesColor ( String sName ) throws ModelException

Gets the color associated with a particular species.

Parameters

sName Species' name.

Returns: This species' color.

Exceptions

ModelException ModelException if the species name is not valid.

◆ getSpeciesDisplayName()

String sortie.datavisualizer.Legend.getSpeciesDisplayName ( int i ) throws ModelException

Gets the species display name for a given species index.

Parameters

i	Species index number.

Returns: Species name.

Exceptions

ModelException If the species index is not valid.

Member Data Documentation

◆ m_oManager

DataFileManager sortie.datavisualizer.Legend.m_oManager

protected

Parent data file manager.

◆ mp_jSpeciesChecks

JCheckBox [] sortie.datavisualizer.Legend.mp_jSpeciesChecks

protected

Checkboxes indicating whether or not a species should be visible.

◆ mp_jSpeciesColorDisplays

JButton [] sortie.datavisualizer.Legend.mp_jSpeciesColorDisplays

protected

The color display for each species.

◆ mp_oSpeciesColors

Color [] sortie.datavisualizer.Legend.mp_oSpeciesColors

protected

The color for each species.

◆ mp_sDisplayNames

String [] sortie.datavisualizer.Legend.mp_sDisplayNames

protected

The names that will be displayed.

◆ mp_sSpeciesNames

String [] sortie.datavisualizer.Legend.mp_sSpeciesNames

protected

The names of each of the species.

The documentation for this class was generated from the following file:

Legend.java
