Disperse base - Version 1.0. More...

#include <DisperseBase.h>

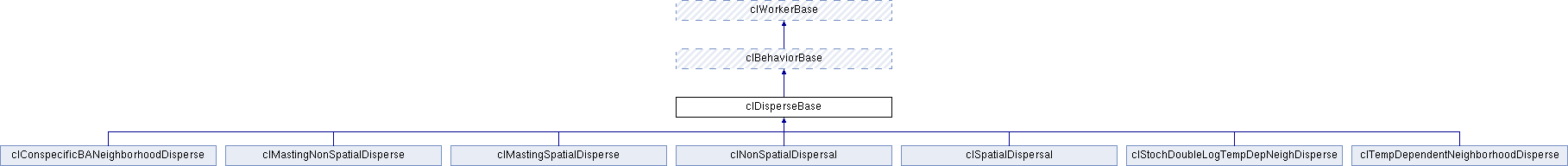

Inheritance diagram for clDisperseBase:

Public Member Functions
	clDisperseBase (clSimManager *p_oSimManager)
	Constructor. More...

virtual	~clDisperseBase ()
	Destroys common objects. More...

void	Action ()
	Performs all disperse calculations. More...

void	TimestepCleanup ()
	Resets all values in the seed grid to 0 and sets the static m_bUpdatedGapStatus to false if this is a hooked object. More...

Public Member Functions inherited from clBehaviorBase
virtual float	GetBehaviorVersion ()
	Gets the behavior version number. More...

	clBehaviorBase (clSimManager *p_oSimManager)
	Constructor. More...

virtual	~clBehaviorBase ()
	Destructor. More...

virtual short int	ValidateVersionNumber (float fTestVersion)
	Makes sure that the version number of a file passed is between the minimum and current version numbers. More...

virtual void	RegisterTreeDataMembers ()
	Registers tree data members. More...

virtual void	SetSpeciesTypeCombos (short int iNumCombos, stcSpeciesTypeCombo *p_whatCombos)
	Sets the species/type combos for a behavior. More...

virtual void	SetNameData (std::string sNameString)
	Sets the string for the parameter file behavior. More...

virtual short int	GetNewTreeInts ()
	Gets the number of new tree integer data members this behavior wants to register. More...

virtual short int	GetNewTreeFloats ()
	Gets the number of new tree float data members this behavior wants to register. More...

virtual short int	GetNewTreeChars ()
	Gets the number of new tree character data members this behavior wants to register. More...

virtual short int	GetNewTreeBools ()
	Gets the number of new tree bool data members this behavior wants to register. More...

virtual short int	GetNumSpeciesTypeCombos ()
	Gets the number of species/type combos to which this behavior applies. More...

virtual short int	GetNumBehaviorSpecies ()
	Gets the number of unique tree species to which this behavior applies. More...

struct stcSpeciesTypeCombo	GetSpeciesTypeCombo (short int iIndex)
	Gets one of this behavior's type/species combos. More...

virtual short int	GetBehaviorSpecies (short int iIndex)
	Gets one of the behavior's species. More...

short int	GetBehaviorListNumber ()
	Gets the behavior list number for this behavior, which differentiates between multiple copies of the behavior in the behavior list. More...

void	SetBehaviorListNumber (short int iNumber)
	Sets the behavior list number for this behavior, which differentiates between multiple copies of the behavior in the behavior list. More...

std::string	FormatSpeciesTypeQueryString ()
	Formats the string for species/types query. More...

virtual DOMElement *	GetParentParametersElement (xercesc::DOMDocument *p_oDoc)
	This will get the correct set of parameters for this behavior based on the behavior list position number. More...

Public Member Functions inherited from clWorkerBase
	clWorkerBase (clSimManager *p_oSimManager)
	Constructor. More...

virtual	~clWorkerBase ()
	Destructor. More...

std::string	GetName ()
	Gets the object's namestring. More...

clSimManager *	GetSimManager ()

void	DoObjectSetup (xercesc::DOMDocument *p_oDoc, fileType iFileType)
	Triggers the setup process. More...

virtual void	EndOfRunCleanup ()
	Performs any necessary cleanup operations at the end of a run. More...

Protected Types
enum	function { weibull, lognormal }
	What PDF is used by a species. More...

enum	cover { gap, canopy }
	Cover status. More...

Protected Member Functions
void	GetData (xercesc::DOMDocument *p_oDoc)
	Triggers all disperse setup if an object is hooked. More...

virtual void	DoShellSetup (xercesc::DOMDocument *p_oDoc)=0
	Setup for a descendent class. More...

virtual void	AddSeeds ()=0
	Performs disperse and adds seeds to seed grid. More...

void	SetUpBase ()
	Does disperse base setup. More...

Protected Member Functions inherited from clWorkerBase
void	AssembleFileCode (int iFileType, int iFileVersion, char *cCode)
	Creates the proper identifying filecode for an XML file. More...

Protected Attributes
bool	m_bHooked

Protected Attributes inherited from clBehaviorBase
short int	m_iNumSpeciesTypeCombos
	How many type/species combos a behavior will act on. More...

short int	m_iNumBehaviorSpecies
	How many distinct species are in the combo list - important for filling species-specific values from parameter file. More...

short int *	mp_iWhatSpecies
	List of distinct species - for filling species-specific values from parameter file. More...

stcSpeciesTypeCombo *	mp_whatSpeciesTypeCombos
	Array of species/type combos that the behavior will act on. More...

short int	m_iNewTreeInts
	The number of new tree integer data members this behavior wants to add. More...

short int	m_iNewTreeFloats
	The number of new tree float data members this behavior wants to add. More...

short int	m_iNewTreeChars
	The number of new tree character data members this behavior wants to add. More...

short int	m_iNewTreeBools
	The number of new tree boolean data members this behavior wants to add. More...

short int	m_iBehaviorListNumber
	The number of this behavior in the behavior list, to differentiate between possible multiple copies of this behavior. More...

float	m_fVersionNumber
	Version number - this will be rounded to 2 digits after the decimal place. More...

std::string	m_sXMLRoot
	XML root that encloses the parameters for this behavior. More...

float	m_fMinimumVersionNumber
	Minimum version number - this behavior will run parameter data for a file marked between this number and the current version number, inclusive. More...

Protected Attributes inherited from clWorkerBase
std::string	m_sNameString
	If a behavior has registered a command line command with the sim manager, this allows it to be called. More...

clSimManager *	mp_oSimManager
	Pointer to the simulation manager object. More...

int *	mp_iAllowedFileTypes
	List of the input file types this object can handle. More...

int	m_iNumAllowedTypes
	Number of input file types this object can handle. More...

Static Protected Attributes
static clDisperseOrg *	mp_oDisperseOrg
	clDisperseOrg object - this pointer is held in common by all shells More...

static clGrid *	mp_oSeedGrid
	Seed grid. More...

static short int *	mp_iNumSeedsCode
	Data member codes for "dispersed seeds" grid for "seeds_x" data member. More...

static short int	m_iGapCountCode
	Data member code - for counting trees for gap status. More...

static short int	m_iIsGapCode
	Data member code for substrate grid for gap status. More...

static short int	m_iTotalSpecies
	Total number of species. More...

static bool	m_bUpdatedGapStatus
	A flag indicating whether or not the gap status of the seed grid has been updated this timestep. More...

static bool	m_bIsStochastic
	Whether dispersal is stochastic (true) or deterministic (false). More...

Friends
class	clDisperseOrg

Detailed Description

Disperse base - Version 1.0.

This is the base class for disperse behaviors. This holds common data.

Author: Lora E. Murphy

Edit history:
--------------—
October 20, 2011 - Wiped the slate clean for SORTIE 7.0 (LEM)

Member Enumeration Documentation

◆ cover

enum clDisperseBase::cover

protected

Cover status.

Enumerator
gap	Gap cover.
canopy	Canopy cover.

◆ function

enum clDisperseBase::function

protected

What PDF is used by a species.

Enumerator
weibull	Weibull function type.
lognormal	Lognormal function type.

Constructor & Destructor Documentation

◆ clDisperseBase()

clDisperseBase::clDisperseBase ( clSimManager * p_oSimManager )

Constructor.

Sets the hook flag.

◆ ~clDisperseBase()

virtual clDisperseBase::~clDisperseBase ( )

virtual

Destroys common objects.

Member Function Documentation

◆ Action()

void clDisperseBase::Action ( )

virtual

Performs all disperse calculations.

This will be the same for all descendent classes - they do not need to override. If a particular object is hooked, it calls the disperse org object's DoDisperse. Otherwise it does nothing.

Reimplemented from clBehaviorBase.

◆ AddSeeds()

virtual void clDisperseBase::AddSeeds ( )

protectedpure virtual

Performs disperse and adds seeds to seed grid.

Implemented in clMastingSpatialDisperse, clSpatialDispersal, clStochDoubleLogTempDepNeighDisperse, clMastingNonSpatialDisperse, clTempDependentNeighborhoodDisperse, clNonSpatialDispersal, and clConspecificBANeighborhoodDisperse.

◆ DoShellSetup()

virtual void clDisperseBase::DoShellSetup ( xercesc::DOMDocument * p_oDoc )

protectedpure virtual

Setup for a descendent class.

If a descendent class has specific setup needs, it can overload this function.

Parameters

p_oDoc DOM tree of parsed input file.

Implemented in clMastingSpatialDisperse, clSpatialDispersal, clStochDoubleLogTempDepNeighDisperse, clMastingNonSpatialDisperse, clTempDependentNeighborhoodDisperse, clConspecificBANeighborhoodDisperse, and clNonSpatialDispersal.

◆ GetData()

void clDisperseBase::GetData ( xercesc::DOMDocument * p_oDoc )

protectedvirtual

Triggers all disperse setup if an object is hooked.

This will be the same for all descendent classes. If a particular object is hooked, it calls the disperse org object's DoSetup() function, which calls the function DoShellSetup() - if a descendent class has specific setup needs, it can overload that function.

Parameters

p_oDoc DOM tree of parsed input file.

Implements clWorkerBase.

◆ SetUpBase()

void clDisperseBase::SetUpBase ( )

protected

Does disperse base setup.

Sets up the "dispersed_seeds" grid, if the static pointer is NULL, and declares mp_fDbhForReproduction.

◆ TimestepCleanup()

void clDisperseBase::TimestepCleanup ( )

virtual

Resets all values in the seed grid to 0 and sets the static m_bUpdatedGapStatus to false if this is a hooked object.

Reimplemented from clWorkerBase.

Friends And Related Function Documentation

◆ clDisperseOrg

friend class clDisperseOrg

friend

Member Data Documentation

◆ m_bHooked

bool clDisperseBase::m_bHooked

protected

◆ m_bIsStochastic

bool clDisperseBase::m_bIsStochastic

staticprotected

Whether dispersal is stochastic (true) or deterministic (false).

◆ m_bUpdatedGapStatus

bool clDisperseBase::m_bUpdatedGapStatus

staticprotected

A flag indicating whether or not the gap status of the seed grid has been updated this timestep.

This will be reset to false during the timestep cleanup.

◆ m_iGapCountCode

short int clDisperseBase::m_iGapCountCode

staticprotected

Data member code - for counting trees for gap status.

◆ m_iIsGapCode

short int clDisperseBase::m_iIsGapCode

staticprotected

Data member code for substrate grid for gap status.

◆ m_iTotalSpecies

short int clDisperseBase::m_iTotalSpecies

staticprotected

Total number of species.

◆ mp_iNumSeedsCode

short int* clDisperseBase::mp_iNumSeedsCode

staticprotected

Data member codes for "dispersed seeds" grid for "seeds_x" data member.

Array size is # species.

◆ mp_oDisperseOrg

clDisperseOrg* clDisperseBase::mp_oDisperseOrg

staticprotected

clDisperseOrg object - this pointer is held in common by all shells

◆ mp_oSeedGrid

clGrid* clDisperseBase::mp_oSeedGrid

staticprotected

Seed grid.

This is the grid which contains the numbers and locations of seeds produced by all parent trees. The resolution defaults to the standard grid default if it is not set by a grid map or grid map header.

The grid's name is "Dispersed Seeds". The grid is static, because multiple instances of this object could be instantiated to handle different dispersal situations.

Data members:

Member name	Data type	Description
seeds_x	float	Number of seeds for each tree species. "x" = species number. There is no check to make sure that each species actually uses disperse.
Is Gap	bool	Gap status of each grid cell.
count	int	Count of reproductively mature trees that use disperse. This number is used to determine gap status.

The documentation for this class was generated from the following file:

DisperseBase.h
