GLI base - Version 1.0. More...

#include <GLIBase.h>

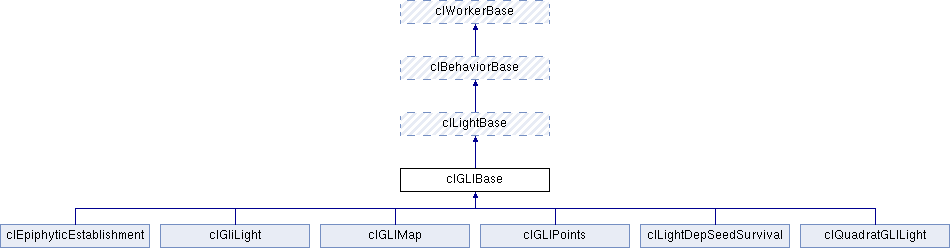

Inheritance diagram for clGLIBase:

Public Member Functions
	clGLIBase (clSimManager *p_oSimManager)
	Constructor. More...

virtual	~clGLIBase ()
	Destructor. More...

float	GetSinMinSunAng ()
	Gets the sine of the minimum sun angle. More...

float	GetAziChunkConverter ()
	Gets the reciprocal of the size of a single azimuth sky grid division, in degrees. More...

float	GetRcpTanMinAng ()
	Gets the reciprocal of the tangent of the minimum sun angle. More...

Public Member Functions inherited from clLightBase
	clLightBase (clSimManager *p_oSimManager)
	Constructor. More...

virtual	~clLightBase ()
	Destructor. More...

void	Action ()
	Performs all light calculations. More...

void	RegisterTreeDataMembers ()
	Performs data member registrations for "Light". More...

virtual float	CalcLightValue (clTree p_oTree, clTreePopulation p_oPop)=0
	Calculates the light value for a particular tree. More...

clLightOrg *	GetLightOrg ()
	Gets the light org object. More...

float	GetMinSunAngle ()
	Gets the altitude angle below which the sky is assumed to be dark. More...

float	GetNumAziAng ()
	Gets the number of azimuth angles into which the sky hemisphere is divided. More...

float	GetNumAltAng ()
	Gets the number of altitude angles into which the sky hemisphere is divided. More...

float	GetMinAngRow ()
	Gets the row in the brightness array corresponding to the minimum solar angle. More...

float	GetBrightness (int alt, int azi)

Public Member Functions inherited from clBehaviorBase
virtual float	GetBehaviorVersion ()
	Gets the behavior version number. More...

	clBehaviorBase (clSimManager *p_oSimManager)
	Constructor. More...

virtual	~clBehaviorBase ()
	Destructor. More...

virtual short int	ValidateVersionNumber (float fTestVersion)
	Makes sure that the version number of a file passed is between the minimum and current version numbers. More...

virtual void	SetSpeciesTypeCombos (short int iNumCombos, stcSpeciesTypeCombo *p_whatCombos)
	Sets the species/type combos for a behavior. More...

virtual void	SetNameData (std::string sNameString)
	Sets the string for the parameter file behavior. More...

virtual short int	GetNewTreeInts ()
	Gets the number of new tree integer data members this behavior wants to register. More...

virtual short int	GetNewTreeFloats ()
	Gets the number of new tree float data members this behavior wants to register. More...

virtual short int	GetNewTreeChars ()
	Gets the number of new tree character data members this behavior wants to register. More...

virtual short int	GetNewTreeBools ()
	Gets the number of new tree bool data members this behavior wants to register. More...

virtual short int	GetNumSpeciesTypeCombos ()
	Gets the number of species/type combos to which this behavior applies. More...

virtual short int	GetNumBehaviorSpecies ()
	Gets the number of unique tree species to which this behavior applies. More...

struct stcSpeciesTypeCombo	GetSpeciesTypeCombo (short int iIndex)
	Gets one of this behavior's type/species combos. More...

virtual short int	GetBehaviorSpecies (short int iIndex)
	Gets one of the behavior's species. More...

short int	GetBehaviorListNumber ()
	Gets the behavior list number for this behavior, which differentiates between multiple copies of the behavior in the behavior list. More...

void	SetBehaviorListNumber (short int iNumber)
	Sets the behavior list number for this behavior, which differentiates between multiple copies of the behavior in the behavior list. More...

std::string	FormatSpeciesTypeQueryString ()
	Formats the string for species/types query. More...

virtual DOMElement *	GetParentParametersElement (xercesc::DOMDocument *p_oDoc)
	This will get the correct set of parameters for this behavior based on the behavior list position number. More...

Public Member Functions inherited from clWorkerBase
	clWorkerBase (clSimManager *p_oSimManager)
	Constructor. More...

virtual	~clWorkerBase ()
	Destructor. More...

std::string	GetName ()
	Gets the object's namestring. More...

clSimManager *	GetSimManager ()

void	DoObjectSetup (xercesc::DOMDocument *p_oDoc, fileType iFileType)
	Triggers the setup process. More...

virtual void	TimestepCleanup ()
	Performs any necessary cleanup operations at the end of a timestep. More...

virtual void	EndOfRunCleanup ()
	Performs any necessary cleanup operations at the end of a run. More...

Protected Member Functions
void	AddTreeToGliFishEye (const float &fTargetX, const float &fTargetY, const float &fTargetHeight, clTree p_oNeighbor, clPlot p_oPlot, clTreePopulation p_oPop, clAllometry p_oAllom)
	Adds one shading neighbor to the fisheye photo array for a GLI calculation. More...

void	GLIFisheyeNoCanopyIntersect (const float &fTargetX, const float &fTargetY, const float &fNeighX, const float &fNeighY, const float &fNeighCanrad, const float &fNeighHeight, const short int &iNeighSpecies, const float &fTargetHeight, const float &fDistToNearEdge, clTree p_oNeighbor, clPlot p_oPlot, clAllometry *p_oAllom)
	Adds one shading neighbor to the fisheye photo array for a GLI calculation when the canopies of the two trees do not overlap. More...

void	GLIFisheyeCanopyIntersect (const float &fTargetX, const float &fTargetY, const float &fNeighX, const float &fNeighY, const float &fNeighCanrad, const float &fNeighHeight, const short int &iNeighSpecies, const float &fTargetHeight, clTree p_oNeighbor, clPlot p_oPlot, clAllometry *p_oAllom)
	Adds one shading neighbor to the fisheye photo array for a GLI calculation when the canopies of the two trees overlap. More...

Protected Member Functions inherited from clLightBase
void	GetData (xercesc::DOMDocument *p_oDoc)
	Triggers all light setup. More...

virtual void	DoShellSetup (xercesc::DOMDocument *p_oDoc)
	If a descendent class has specific setup needs, it can overload this function. More...

void	PopulateGLIBrightnessArray ()
	Populates the GLI brightness array. More...

void	PopulateSailLightBrightnessArray ()
	Populates the sail brightness array. More...

float	GetDayAngle (int iJulianDay)
	Computes day angle. More...

float	GetDeclination (float &fDayAngle)
	Computes solar declination. More...

float	GetEccentricity (float &fDayAngle)
	Computes solar eccentricity. More...

float	GetSunrise (float &fLatInRadians, float &fDeclination)
	Computes sunrise. More...

float	GetCosineOfZenithAngle (float &fDeclination, float &fLatInRadians, float &fTimeNow)
	Computes cosine of the zenith angle of the sun at a given time. More...

float	GetAltitudeAngle (float &fCosZenAng)
	Computes altitude angle of the sun at a given time in radians. More...

float	GetAzimuthAngle (float &fDeclination, float &fLatInRadians, float &fAltInRad, float &fTimeNow)
	Computes azimuth angle of the sun at a given time in radians in SORTIE azimuth coordinates. More...

float	GetAirmassEffect (float &fAltInDeg, float &fCosZenAng)
	Computes the airmass effect for a given altitude angle. More...

float	GetBeamRadiation (float &fClearSkyTransCoeff, float &fAirmass, float &fEccentricity, float &fCosZenAng)
	Computes beam radiation strength. More...

virtual float	GetLightExtinctionCoefficient (clTree *p_oTree)
	Gets the light extinction coefficent. More...

Protected Member Functions inherited from clWorkerBase
void	AssembleFileCode (int iFileType, int iFileVersion, char *cCode)
	Creates the proper identifying filecode for an XML file. More...

Protected Attributes
float	m_fSinMinSunAng
	Sin of the min sun angle. More...

float	m_fAziChunkConverter
	Reciprocal of the size of a single azimuth sky grid division, in degrees. More...

float	m_fRcpTanMinAng
	1/tan (m_fMinSunAngle). More...

float *	mp_fAziSlope
	For each azimuth chunk of sky, this holds the slope of the line to the middle of the chunk. More...

Protected Attributes inherited from clLightBase
bool	m_bHooked
	Whether or not this shell object is hooked to clLightOrg. More...

bool	m_bNeedsCommonParameters
	Whether or not this shell object requires the common light parameters held in clLightOrg such as clLightOrg::m_iLastJulDay. More...

float **	mp_fBrightness
	Sky brightness array. More...

float **	mp_fPhoto
	Simulated fisheye photo array. More...

double	m_fMinSunAngle
	The altitude angle below which the sky is assumed to be dark. More...

double	m_fAzimuthOfNorth
	The azimuth angle of north. More...

int	m_iNumAziAng
	Number of azimuth angles into which the sky hemisphere is divided. More...

int	m_iNumAltAng
	Number of altitude angles into which the sky hemisphere is divided. More...

int	m_iMinAngRow
	Row in the brightness array corresponding to the minimum solar angle. More...

Protected Attributes inherited from clBehaviorBase
short int	m_iNumSpeciesTypeCombos
	How many type/species combos a behavior will act on. More...

short int	m_iNumBehaviorSpecies
	How many distinct species are in the combo list - important for filling species-specific values from parameter file. More...

short int *	mp_iWhatSpecies
	List of distinct species - for filling species-specific values from parameter file. More...

stcSpeciesTypeCombo *	mp_whatSpeciesTypeCombos
	Array of species/type combos that the behavior will act on. More...

short int	m_iNewTreeInts
	The number of new tree integer data members this behavior wants to add. More...

short int	m_iNewTreeFloats
	The number of new tree float data members this behavior wants to add. More...

short int	m_iNewTreeChars
	The number of new tree character data members this behavior wants to add. More...

short int	m_iNewTreeBools
	The number of new tree boolean data members this behavior wants to add. More...

short int	m_iBehaviorListNumber
	The number of this behavior in the behavior list, to differentiate between possible multiple copies of this behavior. More...

float	m_fVersionNumber
	Version number - this will be rounded to 2 digits after the decimal place. More...

std::string	m_sXMLRoot
	XML root that encloses the parameters for this behavior. More...

float	m_fMinimumVersionNumber
	Minimum version number - this behavior will run parameter data for a file marked between this number and the current version number, inclusive. More...

Protected Attributes inherited from clWorkerBase
std::string	m_sNameString
	If a behavior has registered a command line command with the sim manager, this allows it to be called. More...

clSimManager *	mp_oSimManager
	Pointer to the simulation manager object. More...

int *	mp_iAllowedFileTypes
	List of the input file types this object can handle. More...

int	m_iNumAllowedTypes
	Number of input file types this object can handle. More...

Additional Inherited Members
Static Protected Attributes inherited from clLightBase
static clLightOrg *	mp_oLightOrg
	clLightOrg object - this pointer is held in common by all shells More...

Detailed Description

GLI base - Version 1.0.

This groups the common GLI light functions and data members. Child classes can use the functions here, but there are a set of requirements they must fill. They must:

Calculate and set a value for m_fSinMinSunAng (see its entry for equation)
Calculate and set a value for m_fAziChunkConverter (see its entry for equation)
Calculate and set a value for m_fRcpTanMinAng (see its entry for equation)
Calculate and set values for mp_fAziSlope (see its entry for equation)

I could have done a common base class setup function to do this, but those are starting to nest pretty deep between clBehaviorBase and clLightBase. So I left it to the child classes. Each child has to do this separately since each might have different sky setup equations.

Author: Lora E. Murphy

Edit history:
--------------—
April 28, 2004 - Submitted as beta (LEM)

Constructor & Destructor Documentation

◆ clGLIBase()

clGLIBase::clGLIBase ( clSimManager * p_oSimManager )

Constructor.

Parameters

p_oSimManager Pointer to the Sim Manager.

◆ ~clGLIBase()

virtual clGLIBase::~clGLIBase ( )

virtual

Destructor.

Member Function Documentation

◆ AddTreeToGliFishEye()

void clGLIBase::AddTreeToGliFishEye	(	const float &	fTargetX,
		const float &	fTargetY,
		const float &	fTargetHeight,
		clTree *	p_oNeighbor,
		clPlot *	p_oPlot,
		clTreePopulation *	p_oPop,
		clAllometry *	p_oAllom
	)

protected

Adds one shading neighbor to the fisheye photo array for a GLI calculation.

Parameters

fTargetX	X coordinate of target tree
fTargetY	Y coordinate of target tree
fTargetHeight	Height of target tree, in meters
p_oNeighbor	The neighbor to be added
p_oPlot	Pointer to the plot object
p_oPop	Pointer to the tree population object
p_oAllom	Pointer to an allometry object

◆ GetAziChunkConverter()

float clGLIBase::GetAziChunkConverter ( )

inline

Gets the reciprocal of the size of a single azimuth sky grid division, in degrees.

Returns: Converter.

◆ GetRcpTanMinAng()

float clGLIBase::GetRcpTanMinAng ( )

inline

Gets the reciprocal of the tangent of the minimum sun angle.

Returns: Reciprocal of the tangent of the minimum sun angle.

◆ GetSinMinSunAng()

float clGLIBase::GetSinMinSunAng ( )

inline

Gets the sine of the minimum sun angle.

Returns: Sine of the minimum sun angle.

◆ GLIFisheyeCanopyIntersect()

void clGLIBase::GLIFisheyeCanopyIntersect	(	const float &	fTargetX,
		const float &	fTargetY,
		const float &	fNeighX,
		const float &	fNeighY,
		const float &	fNeighCanrad,
		const float &	fNeighHeight,
		const short int &	iNeighSpecies,
		const float &	fTargetHeight,
		clTree *	p_oNeighbor,
		clPlot *	p_oPlot,
		clAllometry *	p_oAllom
	)

protected

Adds one shading neighbor to the fisheye photo array for a GLI calculation when the canopies of the two trees overlap.

Called by AddTreeToGliFishEye().

Parameters

fTargetX	X coordinate of target tree
fTargetY	Y coordinate of target tree
fNeighX	X coordinate of shading neighbor
fNeighY	Y coordinate of shading neighbor
fNeighCanrad	Shading neighbor canopy radius, in meters
fNeighHeight	Shading neighbor height, in meters
iNeighSpecies	Neighbor species
fTargetHeight	Height of target tree, in meters
p_oNeighbor	The neighbor to be added
p_oPlot	Pointer to plot object
p_oAllom	Pointer to an allometry object

◆ GLIFisheyeNoCanopyIntersect()

void clGLIBase::GLIFisheyeNoCanopyIntersect	(	const float &	fTargetX,
		const float &	fTargetY,
		const float &	fNeighX,
		const float &	fNeighY,
		const float &	fNeighCanrad,
		const float &	fNeighHeight,
		const short int &	iNeighSpecies,
		const float &	fTargetHeight,
		const float &	fDistToNearEdge,
		clTree *	p_oNeighbor,
		clPlot *	p_oPlot,
		clAllometry *	p_oAllom
	)

protected

Adds one shading neighbor to the fisheye photo array for a GLI calculation when the canopies of the two trees do not overlap.

Called by AddTreeToGliFishEye().

Parameters

fTargetX	X coordinate of target tree
fTargetY	Y coordinate of target tree
fNeighX	X coordinate of shading neighbor
fNeighY	Y coordinate of shading neighbor
fNeighCanrad	Shading neighbor canopy radius, in meters
fNeighHeight	Shading neighbor height, in meters
iNeighSpecies	Neighbor species
fTargetHeight	Height of target tree, in meters
fDistToNearEdge	Distance to nearest edge of shading neighbor canopy, in m.
p_oNeighbor	The neighbor to be added
p_oPlot	Pointer to plot object
p_oAllom	Pointer to an allometry object

Member Data Documentation

◆ m_fAziChunkConverter

float clGLIBase::m_fAziChunkConverter

protected

Reciprocal of the size of a single azimuth sky grid division, in degrees.

For converting to azimuth rows in brightness array - just multiply by an azimuth heading in degrees. This saves tons of calculations when pre-calculated. Since the size of azimuth sky grid divisions may differ, child classes must set this; it's m_iNumAziAng/360.0.

◆ m_fRcpTanMinAng

float clGLIBase::m_fRcpTanMinAng

protected

1/tan (m_fMinSunAngle).

Child classes must set this.

◆ m_fSinMinSunAng

float clGLIBase::m_fSinMinSunAng

protected

Sin of the min sun angle.

Saves tons of calculations to pre-calculate this. Child classes must set this; it's just sin(m_fMinSunAngle).

◆ mp_fAziSlope

float* clGLIBase::mp_fAziSlope

protected

For each azimuth chunk of sky, this holds the slope of the line to the middle of the chunk.

Array size = m_iNumAziAng. Each value is 1/(tan(fAngChunk*(i + 0.5))), where i = array index, and fAngChunk is the size of each azimuth chunk in radians. Child classes must set this.

The documentation for this class was generated from the following file:

GLIBase.h

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ clGLIBase()

◆ ~clGLIBase()

Member Function Documentation

◆ AddTreeToGliFishEye()

◆ GetAziChunkConverter()

◆ GetRcpTanMinAng()

◆ GetSinMinSunAng()

◆ GLIFisheyeCanopyIntersect()

◆ GLIFisheyeNoCanopyIntersect()

Member Data Documentation

◆ m_fAziChunkConverter

◆ m_fRcpTanMinAng

◆ m_fSinMinSunAng

◆ mp_fAziSlope
